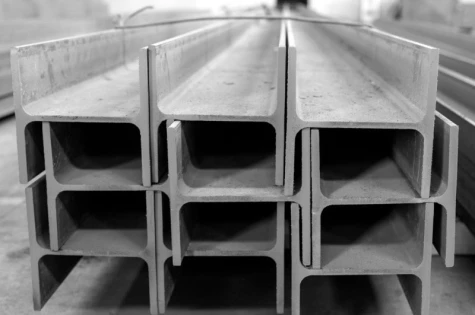

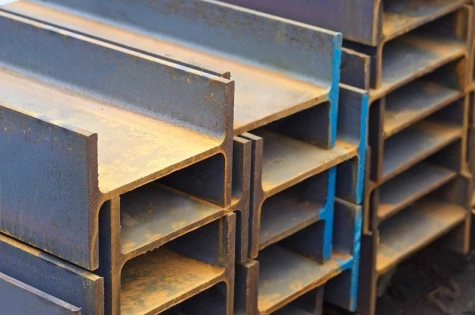

HEA profile, also known as "European Wide Flange Beams", is a type of building material commonly used in the construction of tall buildings and bridges. Due to its high load-bearing capacity, durability, and ability to be produced in various sizes, it is a preferred choice. It is widely used in the construction and metal industries.
| NAME | DIMENSIONS
( h x b ) | BODY (tw)
THICKNESS | CHEEK (tf)
THICKNESS | CORNER(r)
THICKNESS | WEIGHT |
| (mm.) | (mm.) | (mm.) | (mm.) | (mm.) | (Kg./Mt.) |
| 100 HEA | 96X100 | 5 | 8 | 12 | 16.700 |
| 120 HEA | 114X120 | 5 | 8 | 12 | 19.900 |
| 140 HEA | 133x140 | 5,5 | 8,5 | 12 | 24.700 |
| 160 HEA | 152X160 | 6 | 9 | 15 | 30.400 |
| 180 HEA | 171X180 | 6 | 9,5 | 15 | 35.500 |
| 200 HEA | 190X200 | 6,5 | 10 | 18 | 42.300 |
| 220 HEA | 210X220 | 7 | 11 | 18 | 50.500 |
| 240 HEA | 230X240 | 7,5 | 12 | 21 | 60.300 |
| 260 HEA | 250X260 | 7,5 | 12,5 | 24 | 68.200 |
| 280 HEA | 270X280 | 8 | 13 | 24 | 76.400 |
| 300 HEA | 290X300 | 8,5 | 14 | 27 | 88.300 |
| 320 HEA | 310X300 | 9 | 15,5 | 27 | 97.600 |
| 340 HEA | 330X300 | 9,5 | 16,5 | 27 | 105.000 |
| 360 HEA | 350X300 | 10 | 17,5 | 27 | 112.000 |
| 400 HEA | 390X300 | 11 | 19 | 27 | 125.000 |
| 450 HEA | 440X300 | 11,5 | 21 | 27 | 140.000 |
| 500 HEA | 490X300 | 12 | 23 | 27 | 155.000 |
| 550 HEA | 540X300 | 12,5 | 24 | 27 | 166.000 |
| 600 HEA | 590x300 | 13 | 25 | 27 | 178.000 |
| 650 HEA | 640x300 | 13,5 | 26 | 27 | 190.000 |
| 700 HEA | 690x300 | 14,5 | 27 | 27 | 204.000 |
| 800 HEA | 790x300 | 16 | 28 | 27 | 224.000 |
| 900 HEA | 890x300 | 16 | 30 | 27 | 252.000 |
| 1000 HEA | 990x300 | 16,5 | 31 | 27 | 272.000 |
